Metal Soffit & Fascia in Atlantic Canada: Durable, Low-Maintenance & Weather-Resistant Finishes

Home
Metal Soffit & Fascia
Modern outdoor wall light on black ceiling.
Modern architectural roof against blue sky
Modern architectural detail with brown brick and ceiling

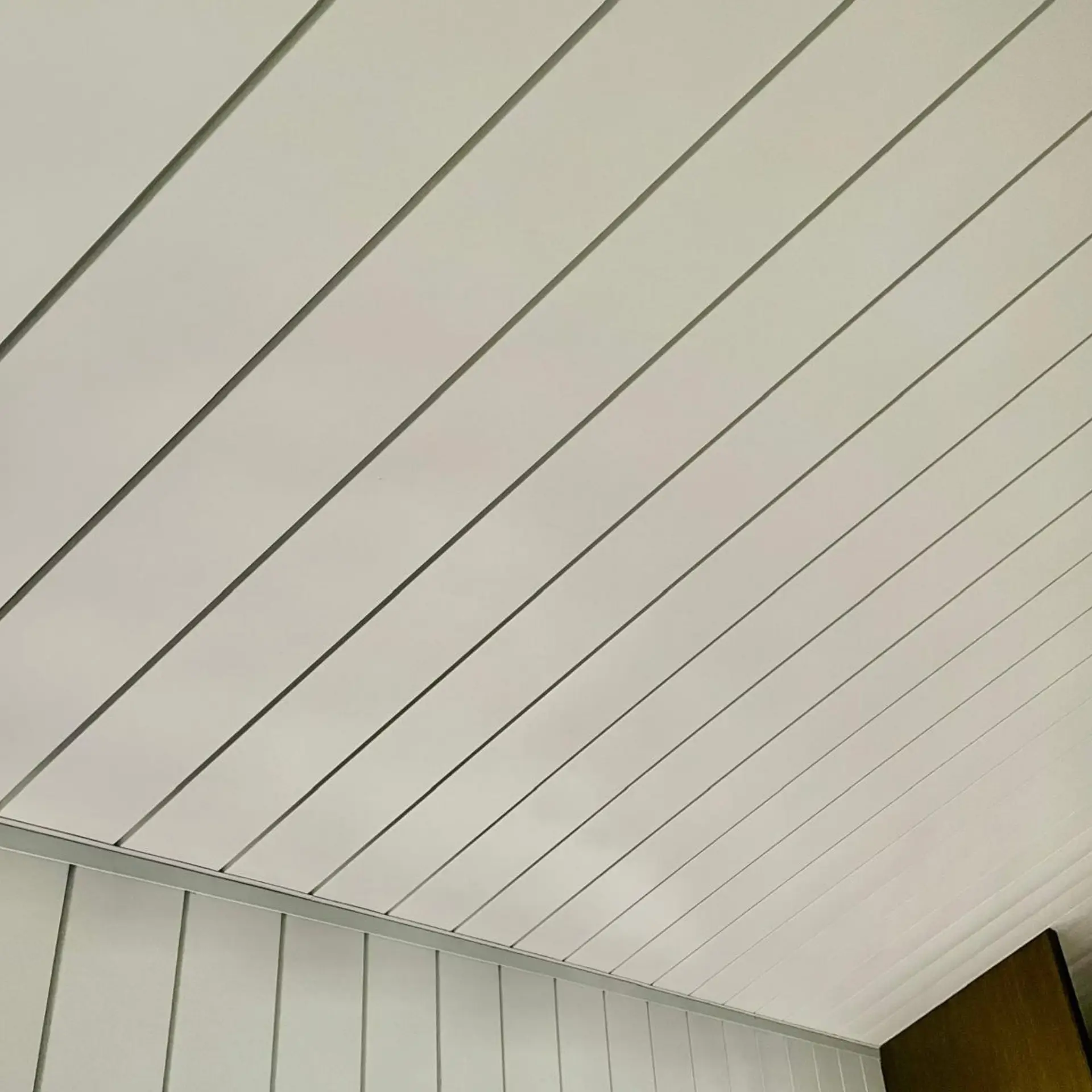

Modern white paneled ceiling design
Modern house with vertical siding and blue sky
House roof with gray and brown panels
Modern building with metal panels under cloudy sky.
White porch ceiling with outdoor lantern.
Cladding color samples: texture, metallic, walnut varieties.

Metal Soffit & Fascia

Discover a collection of modern siding panels to elevate any exterior. Crafted with Nail Strip – Sanp Lock profile from 24 gauge steel and available in colours & finishes like Woodgrain, Concrete or Textured Steel to compliment any design. The Forma Steel Cladding Series makes your building not only stand out from the rest but also provides a durable finish to last a lifetime.

Nail Strip Snap Lock is a concealed fastener system where:

  • One edge of the panel has a built-in flange (the “nail strip”) with pre-punched holes.
  • The next panel snaps over the flange, hiding the fasteners and locking into place.

It’s used in both vertical siding and soffit installations, as well as roofing (especially standing seam systems).

Soffit & Fascia Colour Choices
Data Sheets

Metal Soffit & Fascia Details

Key Features

Feature

Nail Strip Snap Lock Siding/Soffit

Fastener Type

Hidden (nailed through flange)

Panel Locking

Snap-fit over flange

Ease of Installation

Very user-friendly

Aesthetic

Clean lines, no exposed screws

Ventilation (for soffit)

Available in vented or solid

Typical Specs

  • Panel Widths: 12″–16″
  • Seam Height: 1″ or 1.5″
  • Material Thickness: 24–26 gauge steel or .032 aluminum
  • Length: Custom cut to size
  • Finish: PVDF (Kynar 500®), SMP, or woodgrain texture
  • Vent Options (for soffits): Full vent, center vent, or solid

Where It’s Used

  • Vertical Siding: Creates a sleek, modern look with crisp shadow lines.
  • Soffits: Durable, vented or non-vented options; matches siding or fascia.
  • Accents: Porch ceilings, gables, entryways

Common Colors & Textures

  • Matte black, charcoal, bone white, aged copper, bronze, and custom RAL shades
  • Textured/woodgrain finishes available for a warmer look

Advantages

  • Faster install than traditional mechanical seam
  • No clips needed
  • Cleaner appearance with less labor
  • Versatile for walls and soffits

Metal Soffit & Fascia Gallery

Data Sheets & Brochures

1 Inch Soffit & Wall Panel

Metal Soffit Fascia
Data Sheets
View File
